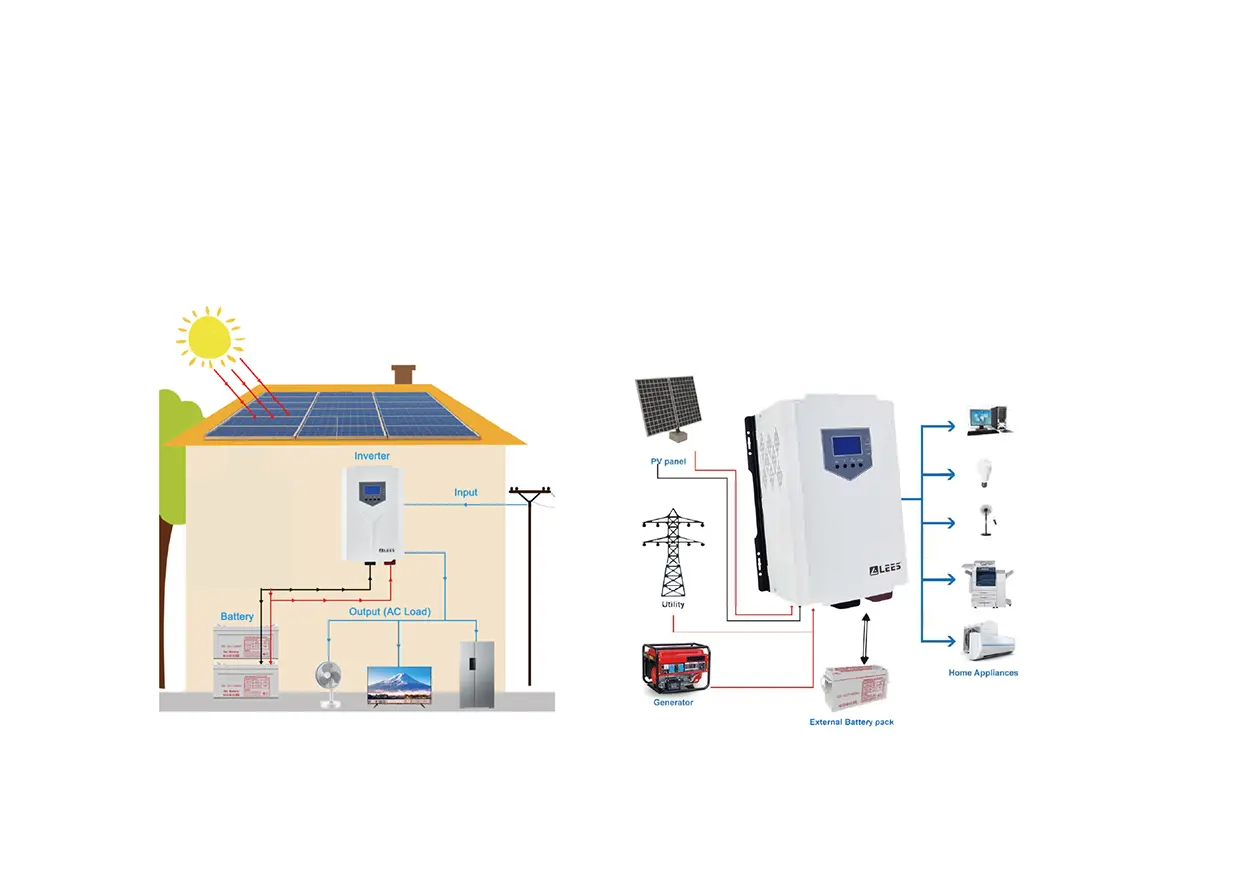

LEES inverter has high conversion efficiency and impact load capacity, has a long life under extreme environmental conditions, low power, overload, high power, high temperature can protect the circuit. Power frequency inverter has many applications, such as air conditioning, television, radio, refrigerator, washing machine, computer and so on.
| MODEL | LS-VT1012M | LS-VT1512M |
| Capacity(VA) | IKVA | 1.5KVA |
| Voltage(DC) | 12V | |
| Nominal Voltage | 220VAC | |
| Voltage Range | 154-265VAC/185-264VAC(selectable) | |
| Frequency | 50-60HZ Auto-sensing | |
| Power Factor | 0.8 | |
| Voltage | 220VAC | |
| Frequency | 50/60HZ | |
| Waveform | Pure Sine Wave | |
| Transfer Time(AC to DC) | <8ms | |
| Transfer Time(DC to AC) | <8ms | |
| Output Voltage Regulation | ± 1 0 % | |
| Bypass Mode | Yes | |
| Saver Mode | Yes | |
| Input Protection | Circuit Breaker | |
| Output Protection | Circuit Breaker | |
| Max. Efficiency | 0.88 | |
| Battery Type | VRLA/GEL/DEEP/CYCLE/lithium battery | |
| Charging Current | 20A | 30A |
| Low-Level disconnect (Selectable) | 10V-11V | |
| Maximum PV array power | 720W | |
| MPPT control voltage range | 18V-150V | |
| MPPT Maximum PV display open circuit voltage | 150VDC | |
| Maximum solar charge current | 60A | |
| Fault | Audible alarm- continuous beeping | |
| Temperature | 0-60℃ | |
| Humidity | －10℃~90℃ Non condensing | |
| Acoustic Noise(DB) | ＜55dB | |
| Package Size L*W*H(mm) | 546*392*260mm | |
| N.W/G.W (kg) | 12.8/15.5 | 13.9/16.5 |
