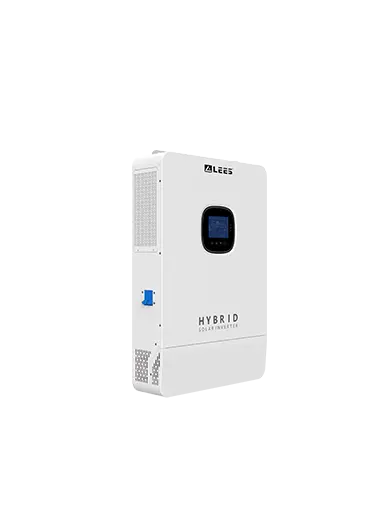

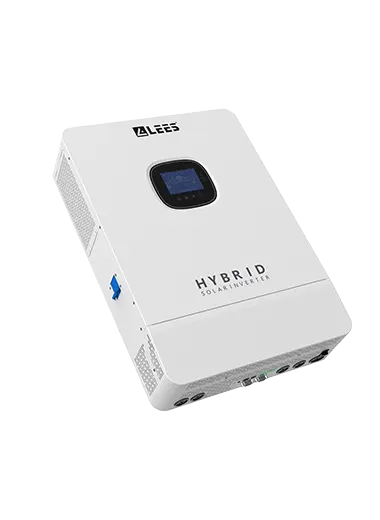

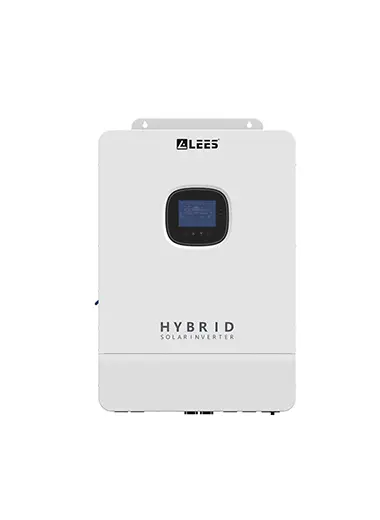

This is a split-phase inverter that can be used for two input voltages.
Suitable for residential and light commercial applications, such as Houses, Countryside, Islands, Pasture, Telecom, and Farm.
Dual MPPT with up to 99.9% efficiency
Up to 22A PV input current perfect for high-power modules
Industrial design with a modern aesthetic look
Easy to install and simple to use
Solar Charger Controller up to 200A charging current
Support for Li-ion battery BMS communication
Outputs high-quality pure sine wave AC power
8-10kW load power to meet the needs of most households
360 degrees of security from hardware to software
EU and North American safety approvals
Exclusive Li-ion battery BMS dual activation
Time-slot function to save cost with peak-valley tariff
| Model | LS-SPI8KU | LS-SPI10KU | CAN BE SET |
| INVERTER | |||
| Rated Output Power | 8000W | 10000W | |
| Max.Peak Power | 16000W | 20000W | |
| Rated Output Voltage | 120/240Vac(L1/L2/N/PE split phase) | Y | |
| Load Capacity of Motors | 5HP | 6HP | |
| Rated AC Frequency | 50/60Hz | Y | |
| Waveform | Pure Sine Wave | ||
| Switch Time | 10ms (typical) | ||
| Parallel Capacity | / | ||
| BATTERY | |||
| Battery Type | Li-ion/Lead-Acid /User Defined | Y | |
| Rated Battery Voltage | 48Vdc | ||
| Voltage Range | 40～60Vdc | Y | |
| Max.MPPT Charging Current | 200A | Y | |
| Max.Mains/Generator Charging | 100A | 120A | Y |
| Max.Hybrid Charging Current | 180A | 200A | Y |
| PV INPUT | |||
| Num. of MPPT Trackers | 2 | ||
| Max.PV Array Power | 11000W | ||
| Max.Input Current | 22/22A | ||
| Max.A voltage of Open Circuit | 500Vdc | ||
| MPPT Voltage Range | 125~425Vdc | ||
| UTILITY/ GENERATOR INPUT | |||
| Input Voltage Range | 90～140Vac | ||
| Frequency Range | 50/60Hz | ||
| Bypass Overload Current | 63A | ||
| EFFICIENCY | |||
| MPPT Tracking Efficiency | 99.9% | ||
| Max. Battery Inverter Efficiency | 92% | ||
| GENERAL | |||
| Dimensions | 620*435*130mm(2*1.4*0.4ft) | ||
| Weight | 20kg(44lb) | 21kg (46.3Ib) | |
| Protection Degree | IP20, Indoor Only | ||
| Operating Temperature Range | -10~55℃,>45℃ derated | ||
| Humidity | -25℃~60℃ | ||
| Cooling Method | Internal Fan | ||
| Warranty | 2Years | ||
| COMMUNICATION | |||
| Embedded Interfaces | RS485/CAN/USB/ Dry contact | Y | |
| External Modules(Optional) | Wi-Fi/GPRS | Y | |
| CERTIFICATION | |||
| Safety | IEC62109-1,IEC62109-2,UL1741 | ||
| RoHs | Yes | ||
| EMC | EN61000-6-1, EN61000-6-3,FCC 15 class B | ||
