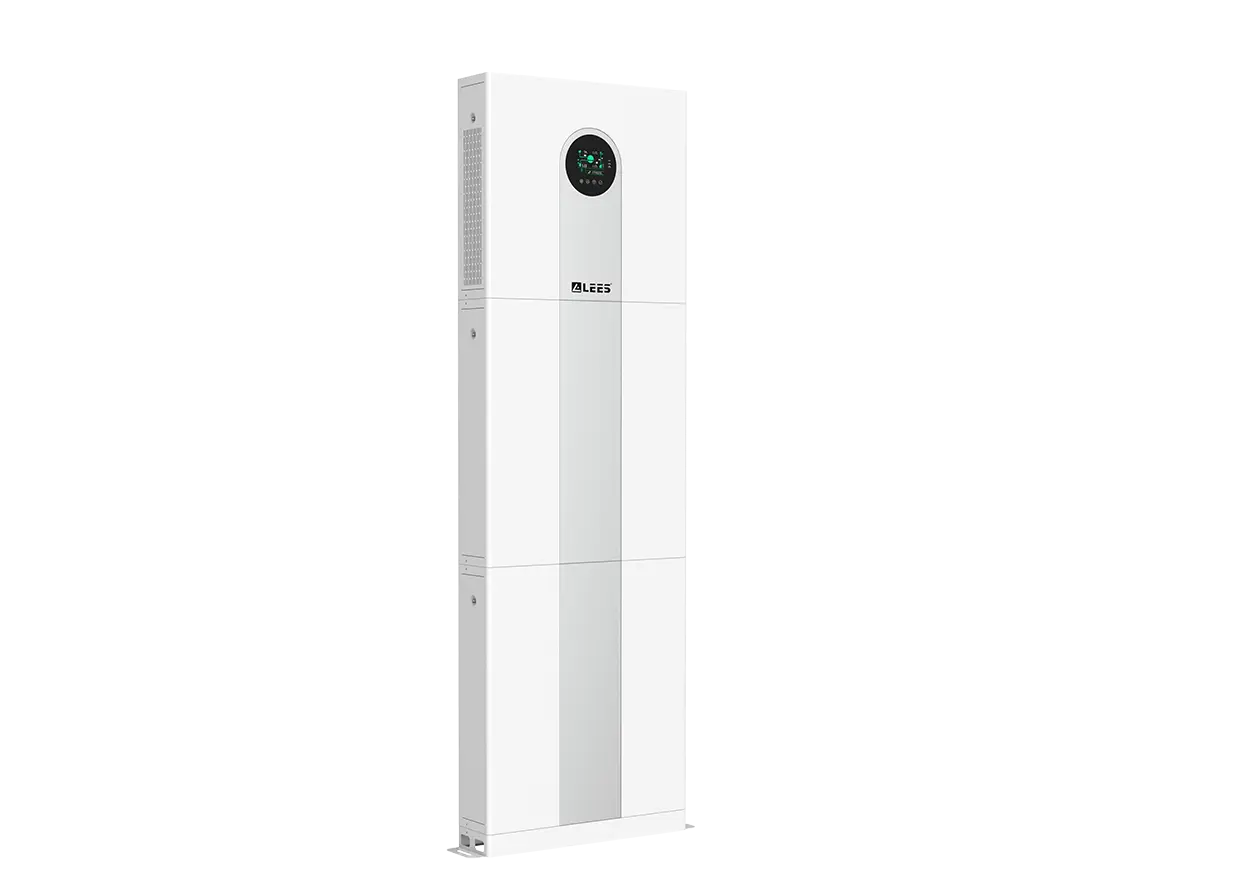

LEES residential all-in-one energy storage system is a smart, easy-to-use, and reliable way to store energy and to reduce electricity costs. It is a plug-and-play system that charges from solar or grid and stores electricity for later use. It helps homeowners save money and increase the use of renewable energy.
A variety of charging methods can be charged with photovoltaic or commercial power, or both at the same time.
The inverter has a variety of working modes. Whether it is used for the main power supply in the area without electricity or a backup power supply in the area with unstable power to deal with sudden power failure, the system can respond flexibly.
Integrated inverter design, easy to use, and quick to install.
Small size, minimizing installation time and cost Compact and stylish design suitable for your sweet home environment.
You can use 4 batteries in parallel at the same time and can provide a maximum of 20kwh for your use.
Vertical industry integration ensures more than
5000 cycles with 80% DoD.
| Model | LS-EOV24-10.0U | |||
| BATTERY TECHNICAL SPECIFICATION | ||||
| Battery model | LS-EOV24-5.0A-E1 | |||
| Number of batteries | 2 | |||
| Battery Energy | 10.24kWh | |||
| Battery Capacity | 400AH | |||
| Weight | 170kg | |||
| Dimension Lx D×H | 1800×600×184mm | |||
| Battery Type | LiFePO4 | |||
| Battery Rated Voltage | 25.6V | |||
| Battery Working Voltage Range | 22.4 ～ 28.8V | |||
| Maximum Charging Current | 150A | |||
| Maximum Discharging Current | 150A | |||
| DOD | 80% | |||
| Designed Life-span | 5000 | |||
| INVERTER TECHNICAL SPECIFICATION | ||||
| INVERTER MODEL | LS-EOV24-3.5U-C1 | |||
| PV CHARGE | ||||
| Solar Charge Type | MPPT | |||
| Maximum Output Power | 4000W | |||
| PV Charging Current Range | 0～80A | |||
| PV Operating Voltage Range | 120～500V | |||
| MPPT Voltage Range | 120～450V | |||
| AC CHARGE | ||||
| Maximum Charge Power | 1120W | |||
| AC Charging Current Range | 0～40A | |||
| Rated Input Voltage | 110/120Vac | |||
| Input Voltage Range | 90～140Vac | |||
| AC OUTPUT | ||||
| Rated Output Power | 3500W | |||
| Maximum Output Current | 40A | |||
| Frequency | 60Hz | |||
| Overload Current | 45A | |||
| BATTERY INVERTER OUTPUT | ||||
| Rated Output Power | 3500W | |||
| Maximum Peak Power | 6000VA | |||
| Power Factor | 1 | |||
| Rated Output Voltage (Vac) | 120Vac | |||
| Frequency | 60Hz | |||
| Auto Switch Period | <15ms | |||
| THD | <3% | |||
| GENERAL DATA | ||||
| Communication | RS485/CAN/WIFI | |||
| Storage time /temperature | 6 months @25℃;3 months @35℃;1 months @45℃; | |||
| Charging temperature range | 0～45℃ | |||
| Discharging temperature range | -10～45℃ | |||
| Operation Humidity | 5%～85% | |||
| Nominal Operation Altitude | <2000m | |||
| Cooling Mode | Force-Air Cooling | |||
| Noise | 60dB(A) | |||
| Ingress Protection Rating | IP20 | |||
| Recommended Operation Environment | Indoor | |||
| Installation Method | Vertical | |||
| Certification | UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3 | |||
